Corrugated steel pipe (CSP) delivers performance that lasts—it’s the backbone of modern stormwater systems and resilient infrastructure. Whether you’re channeling stormwater under a rural road or designing a major public works project, American made corrugated steel brings the strength, flexibility, and sustainability to get the job done right, and keep it that way for generations. At NCSPA, we connect engineers, agencies, and decision-makers with corrugated steel drainage solutions built to outperform, outlast, and outsmart the alternatives.
Top 5 Reasons Engineers Choose CSP
- Proven Longevity
CSP can last 75 to 100 years with proper coatings, providing long-term reliability and reduced maintenance. Learn more in our Service Life Guidelines PDF. - Faster, Smarter Installation
Its lightweight design means quicker installs, smaller crews, and lower costs compared to concrete alternatives. Review our CSP Installation Guide. - Sustainable Infrastructure
Made from recycled steel and fully recyclable at end of life, CSP supports LEED credits and green building goals. Learn more about CSP’s sustainability benefits. - Custom Fit for Any Site
Round, pipe-arch, elliptical, or custom-shaped, CSP adapts to diverse applications and challenging environments. See CSP product options. - American Made, Standards Compliant
All NCSPA-member CSP is made in the USA and meets Buy America and Build America, Buy America (BABA) requirements. Read about our Buy America compliance.
Steel vs the Rest
Smarter From The Start
When it comes to choosing the right pipe for infrastructure applications, performance and value go hand in hand. Corrugated steel pipe (CSP) consistently competes with and often outperforms reinforced concrete and plastic pipe across key metrics that matter to engineers, contractors, and municipalities. Whether you’re focused on strength, cost, environmental impact, or installation efficiency, CSP delivers a smart, sustainable solution. Below is a side-by-side comparison that outlines how CSP stacks up.
Side-by-Side Strengths
| Factor | Corrugated Steel Pipe (CSP) | Reinforced Concrete Pipe (RCP) | HDPE / Plastic Pipe |
|---|---|---|---|
| Structural Strength | High; steel ribs flex to carry live loads without cracking | High compressive strength but rigid, prone to cracking if subgrade shifts | Moderate; relies on soil enclosure for stiffness |
| Installation Speed | Lightweight sections set quickly with small crews and light equipment | Heavy pieces require cranes, larger crews, and traffic control | Lightweight like CSP, but often needs precise imported bedding |
| Service Life | 75–100 years with appropriate coatings | 50–75 years; durability drops in aggressive soils | 50 years; UV and chemical exposure can shorten life |
| Environmental Profile | Made from recycled steel and 100 percent recyclable | High embodied carbon; limited reuse options | Petroleum-based resin, difficult to recycle at scale |
| Jobsite Footprint | Fewer trucks and lighter picks reduce fuel use and congestion | More truckloads and heavy picks increase site impacts | Lighter picks, but additional bedding and more trucks required |
| Installed Cost | Lowest installed cost per linear foot; lightweight pipe and rapid placement cut labor and equipment expenses | Higher installed costs due to heavy handling, crane time, and reinforced bedding drive up total price | Higher installed cost due to additional bedding material and higher quality backfill material |
| Domestic Sourcing | Readily sourced from U.S. mills and fabricators | Aggregates may be local, but cement and rebar often imported | HDPE resin frequently imported, complicates BABA compliance |
See the Difference
Still not convinced? Check out these direct comparison flyers that break it all down:
- Spiral Rib CSP vs Polypropylene
- Spiral Rib CSP vs HDPE
- Spiral Rib CSP vs RCP
- Top 10 Reasons to Choose CMP Drainage
These side-by-side documents make it easy to see how CSP outperforms in strength, cost, durability, and compliance—whether you’re comparing to plastic or concrete.
Performance and Resilience
CSP combines the high tensile strength of steel with a corrugated profile that distributes load efficiently. Unlike rigid pipe, CSP flexes with minor settlement, preventing cracking and joint separation. Galvanized, aluminized, and polymer coatings defend against abrasion and corrosion, see our Coating Selection Guide for details on matching a coating to site chemistry. Documented installations exceed a century of service in varied soils and climates, many highlighted in our Case Studies.
How CSP Performs When the Pressure Rises:
- Post‑event Repairs: CSP can be re‑rounded or lined, reducing cost compared to full replacement. While we do not currently offer a stand‑alone Rehabilitation Guide, we encourage referencing the Design and Installation Manual and technical bulletins.
- Extreme Floods: Steel walls maintain shape and hydraulic area, protecting upstream assets. Explore relevant examples in our Project Highlights.
- Seismic Zones: Ductile steel ribs flex with ground movement, whereas concrete joints often crack, causing leakage. Learn more in our Seismic Design Overview.
Be sure to explore our wide range of CSP coatings and materials to find the perfect fit for your project.
Installation and Versatility
American made corrugated steel pipe is designed for efficient handling and installation in the field. Available in a wide variety of lengths, CSP minimizes the number of joints required, which not only speeds up installation but also improves long-term performance. Many sections arrive nestable, reducing shipping volume and costs. Our systems require only small crews and light equipment, often completing installs in half the time required for concrete alternatives.
Fewer Joints, Faster Installs
Joint designs can be customized to meet hydraulic and structural demands, and CSP offers fully watertight connections where needed. From slope ends to bevels and elbows, nearly any configuration can be field-modified or factory-fabricated. Need something more complex? Our member fabricators routinely build custom manifolds, risers, reducers, and transitions on quick turnarounds.
For large projects or remote sites, CSP can even be fabricated onsite using a mobile mill, eliminating transportation delays and allowing pipe lengths to be tailored directly to job conditions.
- Round diameters from six to one hundred forty-four inches accommodate storm drains, culverts, detention and infiltration systems.
- Pipe-arch and elliptical shapes reduce cover requirements and maximize flow capacity in constrained profiles.
- Structural plate spans up to forty feet replace aging short-span bridges without extended road closures.
Explore our Project Spotlight page to see real-world examples across a range of site conditions. To find a partner that can fabricate, deliver, or roll on-site, visit our Member Directory.
Sustainability and American Pride

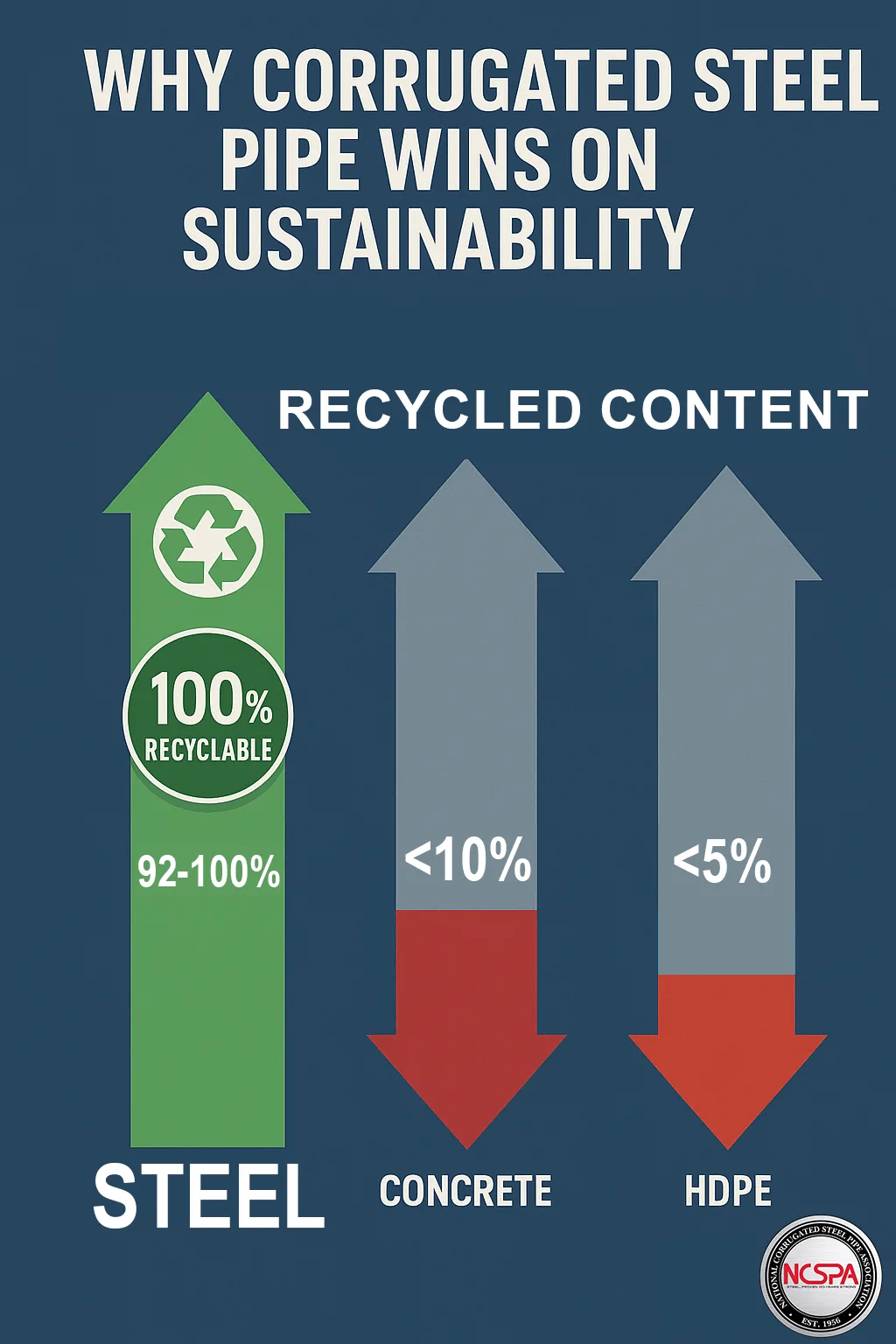

Every CSP installation starts with recycled steel and ends with full recyclability, reinforcing its sustainability lead in durable infrastructure and making it one of the most circular infrastructure materials on the market. Most corrugated steel pipe contains a minimum of seventy percent recycled content, significantly reducing embodied carbon when compared to concrete and plastic alternatives. Unlike petroleum-based materials, steel can be reclaimed, reprocessed, and rolled into new infrastructure without quality loss, keeping material in circulation and out of landfills.
CSP supports long-term environmental goals by lowering transportation emissions through lightweight delivery and nestable shipments, reducing the number of truckloads and fuel use per project. With fewer joints, faster installation, and low maintenance requirements, CSP systems that use recycled steel have a reduced long-term footprint on both the environment and your operations budget.
When it comes to supporting American jobs and infrastructure, CSP stands above. By specifying American made recycled steel, agencies and contractors can reduce waiver risk, simplify procurement, and support American mills and fabricators.. All NCSPA member companies manufacture their products in the United States using domestic steel, ensuring compliance with Buy America and Build America, Buy America (BABA) standards. By specifying CSP, agencies and contractors can reduce waiver risk, simplify procurement, and support American mills and fabricators.
To learn more about our sustainability impact, LEED alignment, and domestic sourcing policies, visit our Sustainability Page and Policy Section.
See CSP in Action
Don’t just take our word for it. Explore our projects and case studies to see how American made corrugated steel pipe is transforming infrastructure challenges into long-term successes across the country. American made corrugated steel pipe offers unmatched strength and durability, especially in stormwater systems that demand long-term performance.
Build with Confidence
Our website is more than just a place to download specs or read up on standards. It’s your all-in-one hub for tools, guidance, and up-to-date industry insights. Our Resource Library includes:
- Easy-to-use calculators, charts, and installation tools to streamline your design process
- Brochures and technical resources to support contractors and proposal development
- Case studies and field performance reports that demonstrate CSP’s success in action
- Policy summaries and compliance references for ASTM, AASHTO, and Buy America regulations
We’re also committed to advancing the industry’s future through the NCSPA Education & Research Institute (NERI). NERI funds meaningful research, builds academic partnerships, and supports aspiring engineers through annual scholarships that encourage innovation and leadership in the drainage and infrastructure sectors. NERI is working hard to shape how the next generation of professionals approach sustainable, American-made infrastructure.
Learn how NERI is making an impact on the NERI page.
Got a project on the horizon? Find an NCSPA manufacturer near you or visit our Resource Library for tools like the Design and Installation Manual and Service Life Selection Guide.
